Thule TopRide Fork Mounted Cycle Carrier

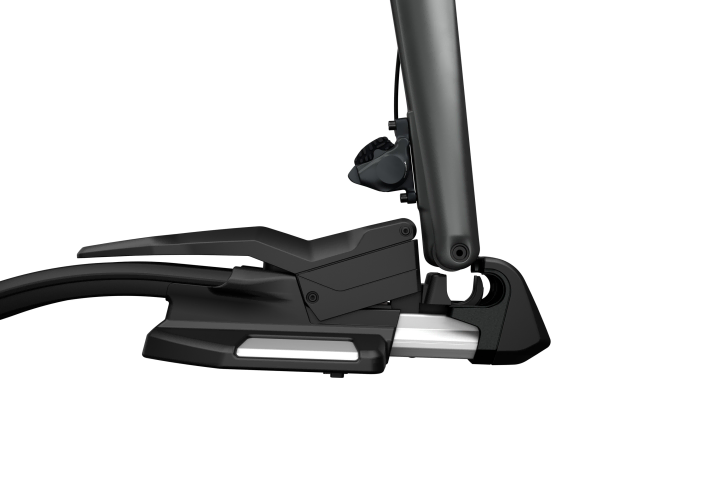

Thule TopRide - Front Fork Mount

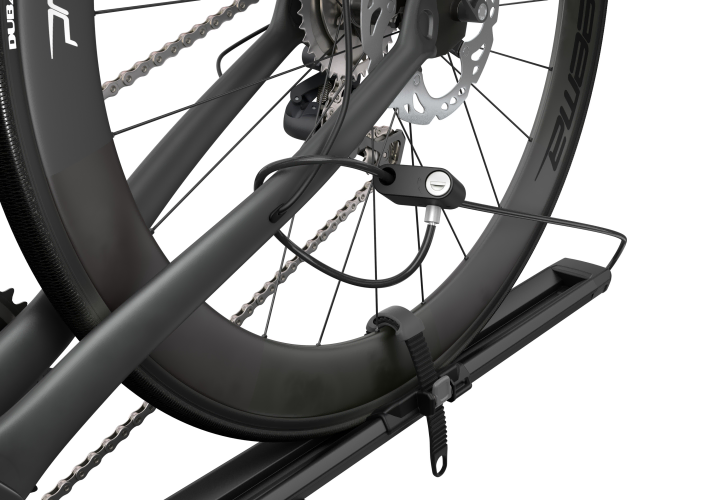

Thule TopRide - Rear Cable Lock
Thule TopRide 568
Nationwide Delivery
Free Click & Collect
Roof Mounted Carrier for Quick Release and Thru-Axle Cycles
The Thule TopRide 568 Roof Mounted Cycle carrier, with a stylish and easy to use Fork Clamping design makes mounting and dismounting your Cycle a simple task. The included fork adapters can be fitted to the bike before mounting on the rack, the Acu-Tight mount for Quick Release forks clicks off at the correct tension so you know when it's secure. Additional adapters are available for 20x110mm Thru-Axle forks.
The fork axle adapters slide along a guided track, clicking and revealing the green release button when correctly mounted. A rear ratcheting strap with rubber strap cover keeps the back wheel firmly in place.
Fitted with 20x20mm T-Track bolts as standard the TopRide 568 easily slides onto any Thule RoofBar with a T-Track slot, additional adapters for larger 24x30mm T-Tracks or for mounting around Square Bars are also available.
Compatible with Thule's One Key System the TopRide 568 has 2 locking Points, one locking the bike to the carrier via a rear mounted cable lock, the other locking the carrier onto your existing Roof Rack.
Features
- Easy Mount for 9-15mm Thru-Axle and 9mm Quick Release Forks
- Adapters Available for 20x110mm Thru-Axle Forks
- Clearance for Disk Brake Callipers
- Fork Adapter Can Be Fitted On The Ground for Easy Mounting
- Acu-Tight Torque Limiter Axle for Secure Mounting of Quick Release Forks
- Fork Slides on a Guided Track With an Audible Click When in Place
- Easy Mounting with Audible and Visual Confirmation of Correct Placement
- Rear Ratcheting Strap with Rubberised Strap Protector for Securing Rear Wheel
- Easy Release Lever for Removing your Bike.
- Rear Mounted Cable Lock for Locking Your Bike to the Carrier
- Mounts to All Thule Roof Racks (Adapter May Be Required)
- Fits Square Bars (Required Adapter: TopRide Around-the-bar Adapter 8899)
- One Key System Compatible
- Carbon Frame Compatible
- Carbon Fork Dropout Compatible
Specification
- Weight Capacity (kg): 18
- Weight (kg): 3.5
- Dimensions (cm): 140 x 21 x 15.3
- Max Tire Width (in): 3
- Max Wheel Diameter (in): 29
- Max Wheelbase (mm): 1250
- Thru-Axle Compatible: Yes
- Carbon Frame Compatible: Yes
- Carbon Fork Dropout Compatible: Yes
- Fits Roof Racks with 20x20mm T-Tracks: Yes
- Fits Roof Racks with 24x30mm T-Tracks: Adapter Required (Thule T-Track Adapter 889-3)
- Fits Square Bar Systems: Adapter Required (Thule FastRide & TopRide Around-The-Bar Adapter 8899)
- One Key System Compatible: Yes
- Model: 568
