Bixpy Universal Versa Rudder with 10mm rudder pin

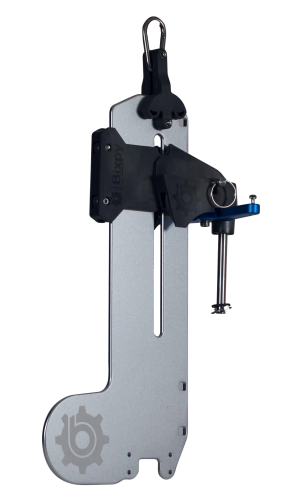

Bixpy Universal Versa Rudder

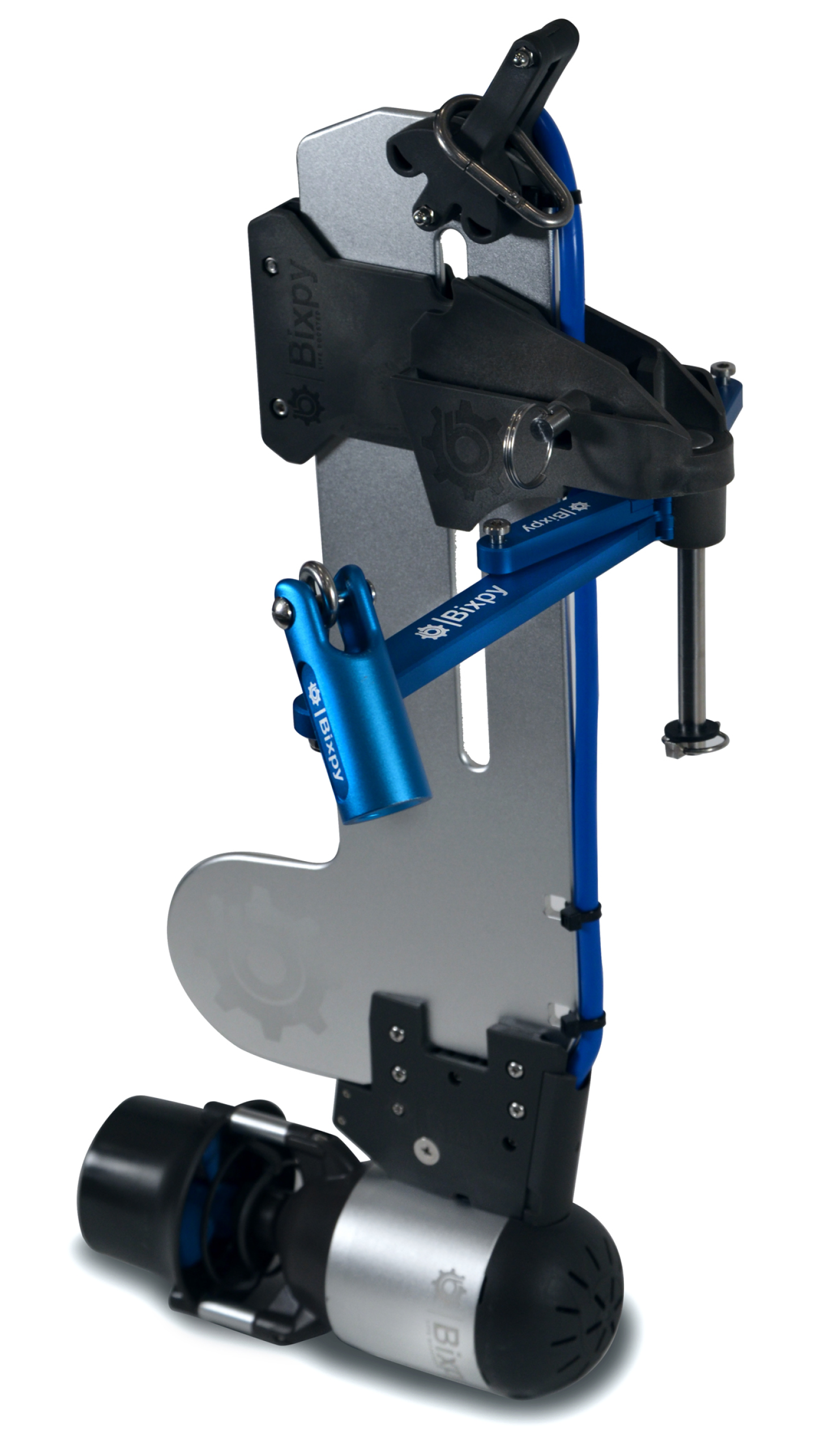

Bixpy Universal Versa Rudder with motor unit fitted

Bixpy Universal Versa Rudder with Bixpy Motor

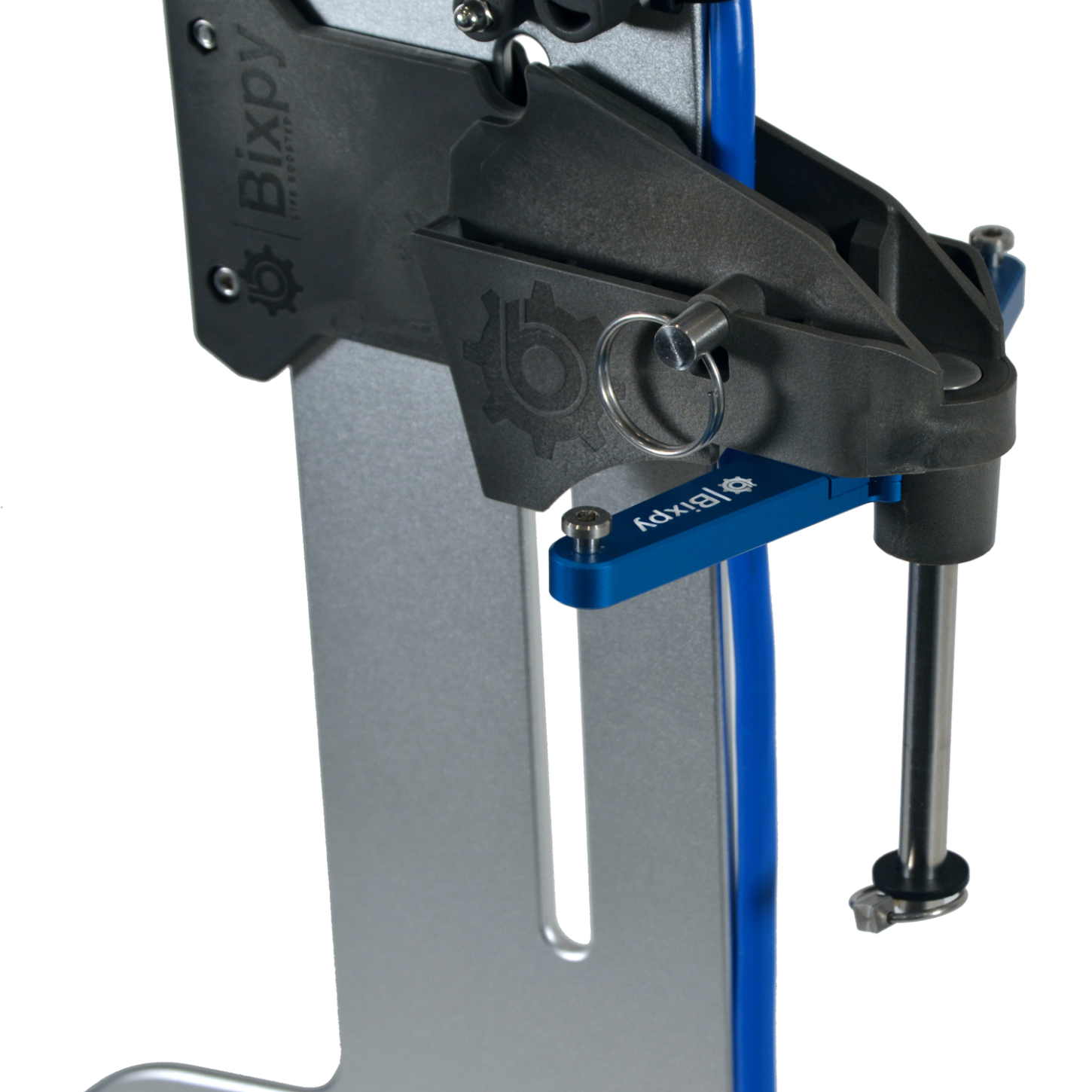

Bixpy Universal Versa Rudder showing V ARM for attaching steering cables

Bixpy Universal Versa Rudder V ARM

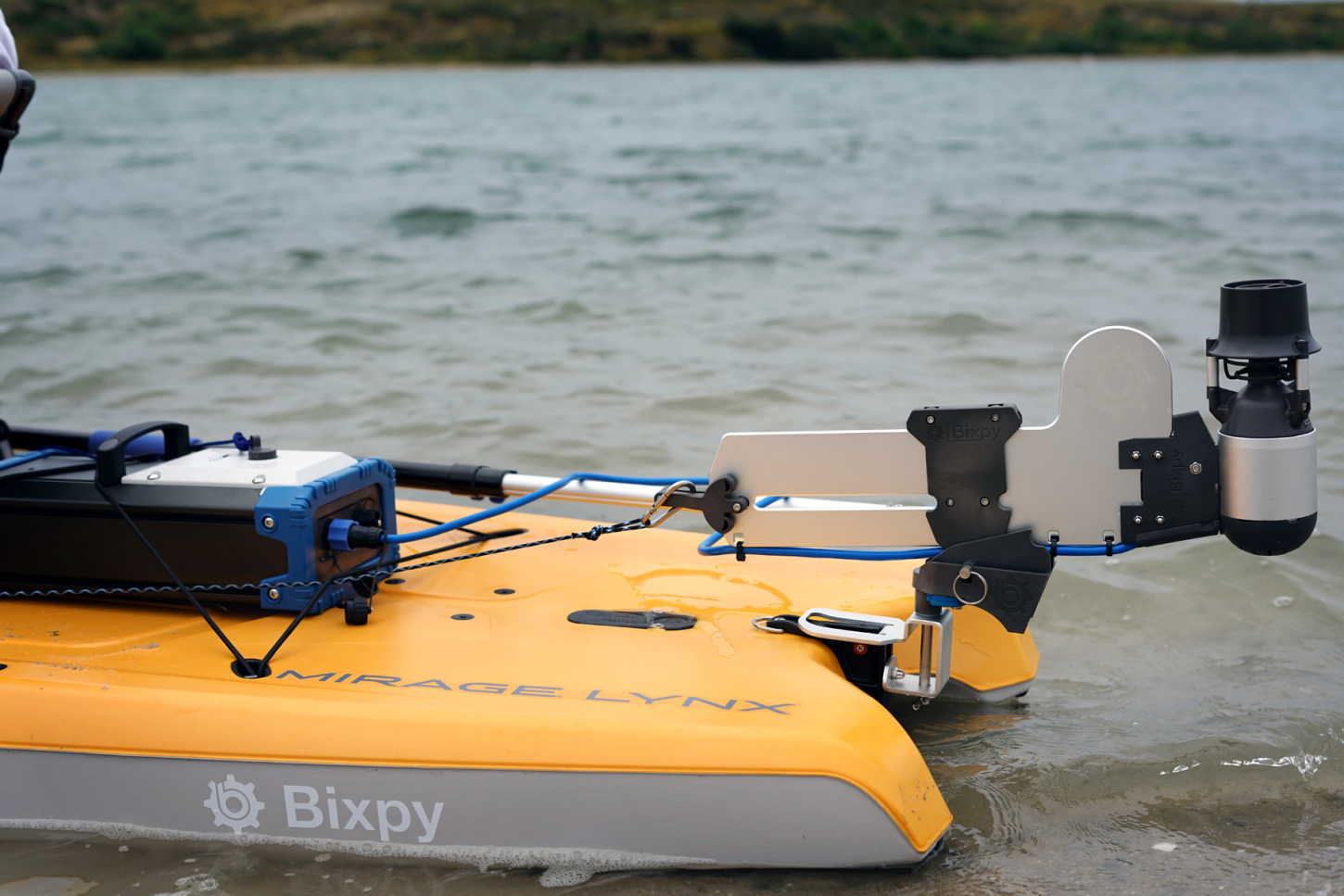

Bixpy Universal Versa Rudder Stowed on Hobie Lynx

Bixpy Universal Versa Rudder in uphauled position

Bixpy Universal Versa Rudder with 10mm rudder pin
Bixpy Universal Versa Rudder with motor unit fitted
Bixpy Universal Versa Rudder showing V ARM for attaching steering cables
Bixpy Universal Versa Rudder Stowed on Hobie Lynx
Video Overview of the Bixpy Versa Rudder
Installation Video for the Bixpy Versa Rudder

Bixpy Versa Rudder With V-Arm Steering

Nationwide Delivery Avilable For The Bixpy Versa Rudder With V-Arm Steering Nationwide Delivery
UK Delivery available for the Bixpy Versa Rudder With V-Arm Steering.

Collection From Store Available For The Bixpy Versa Rudder With V-Arm Steering Free Click & Collect
Buy online, collect in-store, See Details.

Bixpy K-1 Motor Rudder Adaptor For 10mm Rudder Pin Housing

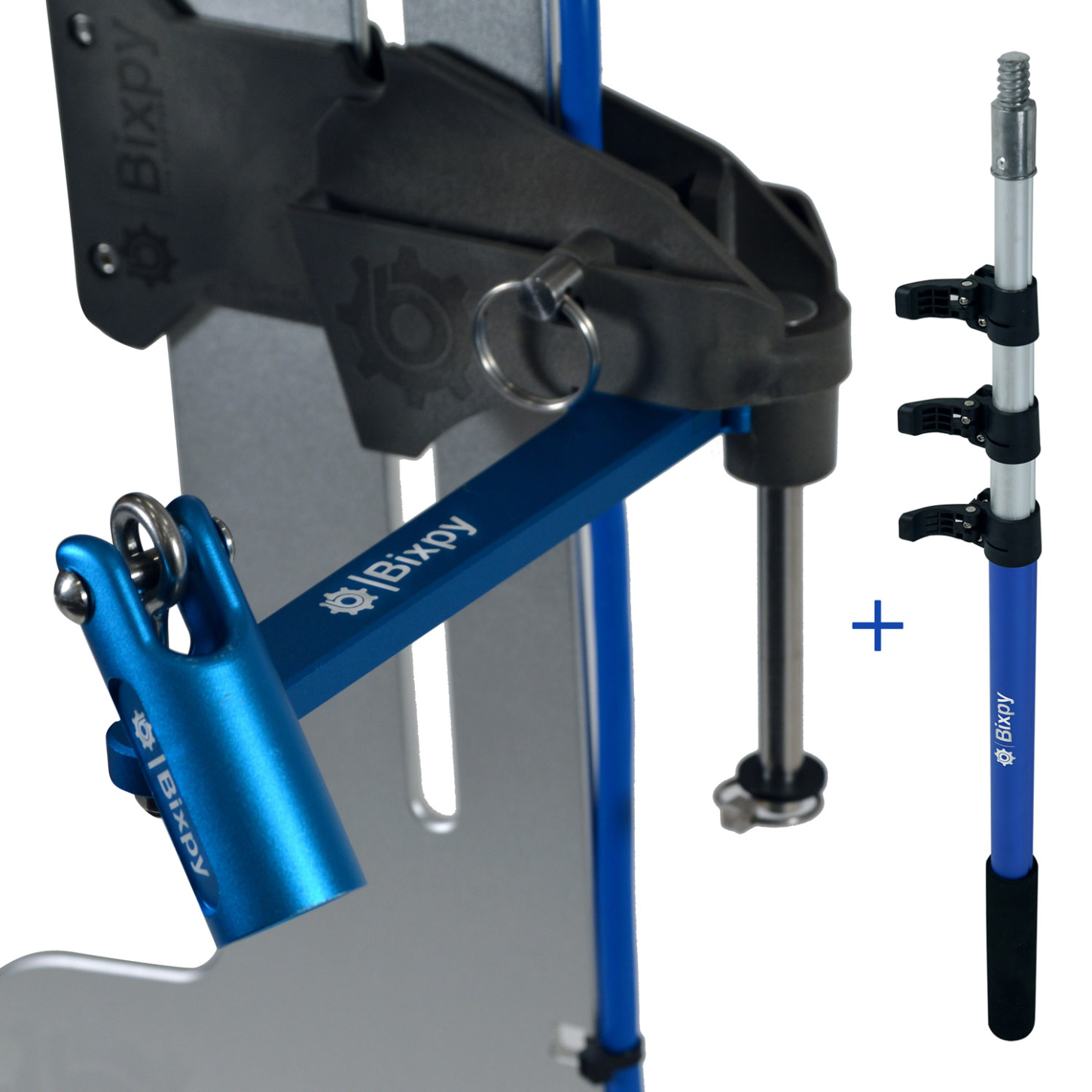

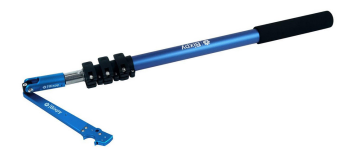

The Bixpy Versa Rudder™ with Steering is specifically designed to accept the Bixpy K-1 Motor. It is made from anodized aluminium and glass-filled nylon and ideal for marine or freshwater paddling. The lower end of the rudder blade has a 'tail' to increase turning efficiency. The Versa Rudder™ also offers the V-ARM™ for your rudder lines to attach to or you can connect a pole steering system if you prefer. If you do not have existing steering lines on your kayak the Pole Steering set up with extendable handle will work with most sit on kayaks.

The up/downhaul wheels have a lovely action making it easy to raise or lower the rudder and a quick-release pin provides for easy rudder removal. The robust double hinged, 90° Slide & Stow mechanism lifts the rudder completely out of the water when not in use, check out the photo of it on a Hobie Lynx to see this in the stowed position.

The Versa Rudder™ has a 10mm stainless steel pin that will fit most rudder ready kayaks such as Viking Kayaks, Vibe Kayaks, Perception Kayaks, Feelfree Kayaks, Ocean Kayaks, Wilderness Systems Kayaks, and more!  Bixpy's gravity driven locking mechanism allows the rudder to lock into place when motorized in forward or reverse.

Fitting a Bixpy K-1 Motor to your rudder ready kayak with the Universal Versa Rudder Adaptor couldn't be easier. Simply attach the Versa Rudder in place of the stock kayak rudder that utilizes a 10mm rudder pin. Attach your rudder control lines with the V-Arm Steering included, and your kayak is now motorised!

Please make sure you choose the appropriate steering option for your watercraft, if in doubt give our staff a call or drop us an email and we will be happy to advise. You can check compatibility with Bixpy's handy Kayak Compatibility Chart.


Features

  • Mounts into any standard rudder 10mm pin hole
  • Gravity deployment system
  • 90° quick Slide & Stow feature
  • "Lock-down" mechanism for using the rudder in reverse speeds
  • 18in. x 4in. rudder blade
  • Kick up feature for shallow water and hazards
  • Removable cap for mounting Bixpy Jet Motor
  • The top of the pin to the top of the motor measures 12.25 inches or 305 mm
  • Pin length is 85 mm. Gap from pin to blade is 38 mm
  • To work effectively, the Bixpy motor needs to be about 2" to 3" below waterline



What's Included?

  • Bixpy Versa Rudder™
  • Bixpy Clam Cleat
  • Pull up rope
